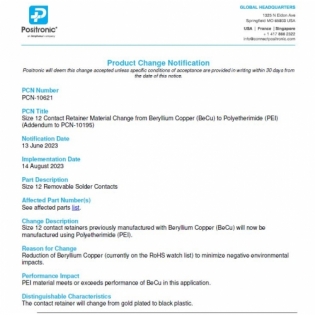

PCN10621-Size 12 Contact Retainer Material Change
DEATIL詳細介紹
PCN Title：Size 12 Contact Retainer Material Change from Beryllium Copper (BeCu) to Polyetherimide (PEI)
(Addendum to PCN-10195)
Notification Date：13 June 2023
Implementation Date：14 August 2023
Part Description：Size 12 Removable Solder Contacts
Affected Part Number(s)：See affected parts list.
Change Description：
Size 12 contact retainers previously manufactured with Beryllium Copper (BeCu) will now be
manufactured using Polyetherimide (PEI).
Reason for Change：
Reduction of Beryllium Copper (currently on the RoHS watch list) to minimize negative environmental
impacts.
Performance Impact：
PEI material meets or exceeds performance of BeCu in this application.
Distinguishable Characteristics：
The contact retainer will change from gold plated to black plastic.

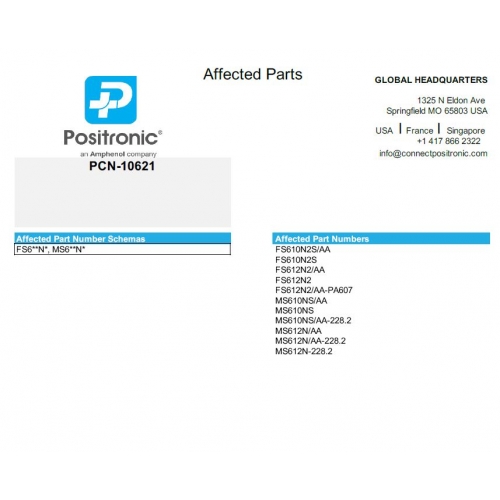

Affected Part Numbers：
FS610N2S/AA
FS610N2S
FS612N2/AA
FS612N2
FS612N2/AA-PA607
MS610NS/AA
MS610NS
MS610NS/AA-228.2
MS612N/AA
MS612N/AA-228.2
MS612N-228.2
